Frameshield 100 is a spunbonded, polypropylene material developed primarily as a breather membrane for use in timber - frame wall construction.
Applied in the factory during manufacture or on site, Frameshield 100 affords effective protection of timber frames during construction against wind-driven rain, snow and dust.
Once completed, the high water vapour permeability of Frameshield 100 allows the controlled escape of vapour from within the timber frame whilst restricting the ingress of rain and moisture.
Frameshield 100 Roll

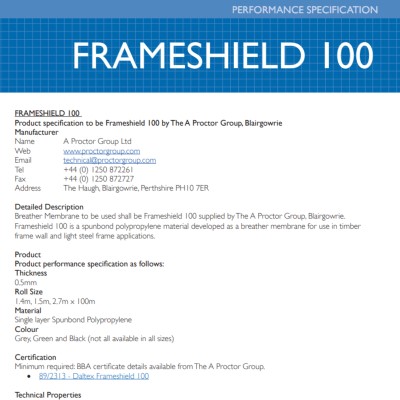

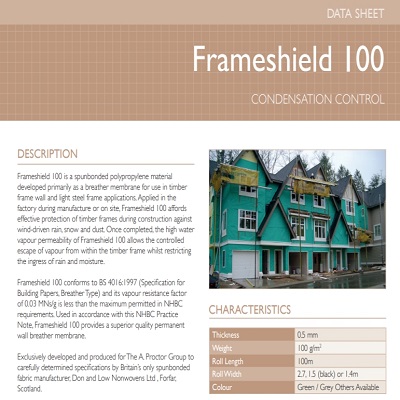

Datasheets

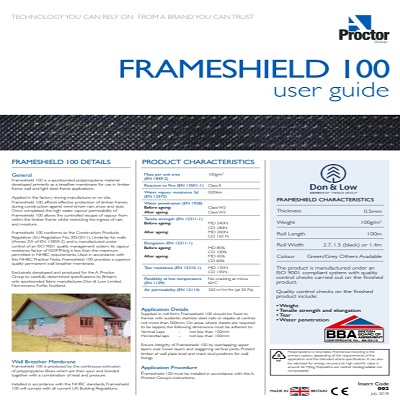

Installation Guides
Material Properties
UK Availability

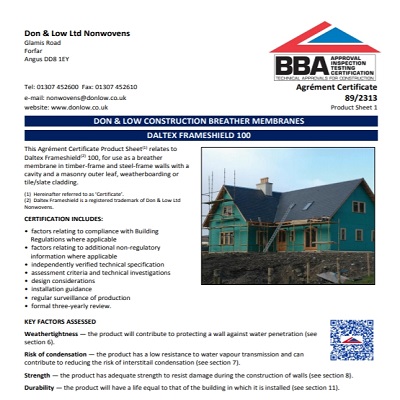

Certification
CAD Details
Global Availability
Material Properties
Frameshield 100
| Property | Test Method | Result |
|---|---|---|
| Thickness | 0.5 mm | |
| Weight | 100 g/m2 | |
| Roll Size | 100 x 1.4, 1.5, 2.7 m | |
| Colour | Green/Grey - Others Available | |
| Water Vapour Resistance Sd | EN 12572 | 0.006 m |
| Water Vapour Resistance | BS 3177 | 0.03 MNs/g |
| Reaction to Fire | EN 11925-2 | E Class |
| Water Penetration | EN 1928 | W2 Class |
| Tensile Strength - MD | EN 12311-1 | 240 N |
| Tensile Strength - CD | EN 12311-1 | 180 N |
| Elongation - MD | EN 12311-1 | 85 % |
| Elongation - CD | EN 12311-1 | 100 % |
| Tear Resistance - MD | EN 12310-1 | 135 (-50) N |
| Tear Resistance - CD | EN 12310-1 | 145 (-50) N |
| Flexibility at Low Temperature | EN 1109 | No cracking at -60C |
