With an R-Value of 0.78 m2K/W, Reflectatherm Plus is the industry leading reflective vapour barrier. It combines the highest thermal performance in its class with a high vapour resistance to prevent interstitial condensation.Suitable for use in walls, ceilings and floors on the warm side of the insulation.
Reflectatherm Plus Roll
Brochures

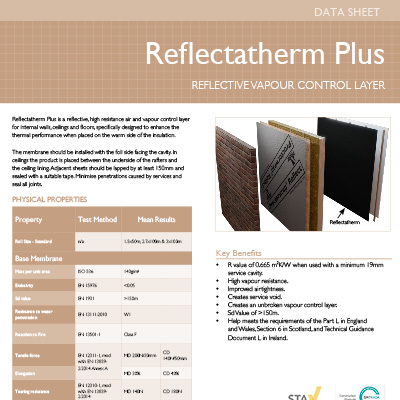

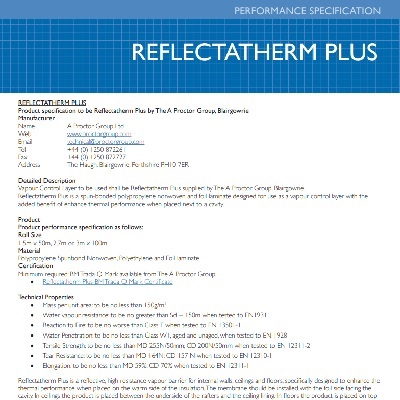

Datasheets

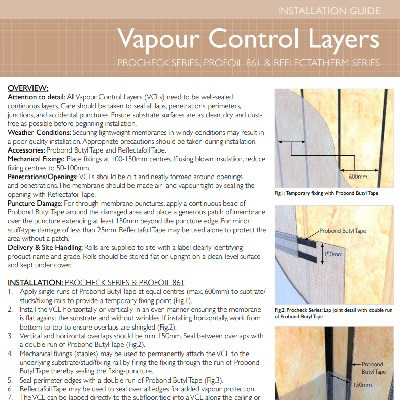

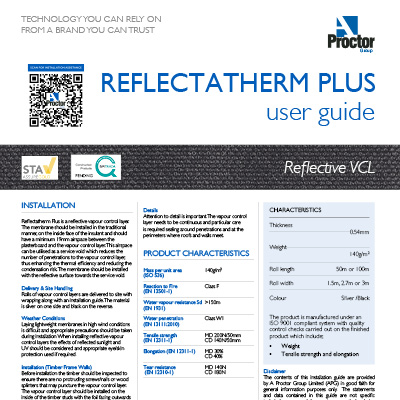

Installation Guides
Material Properties
UK Availability

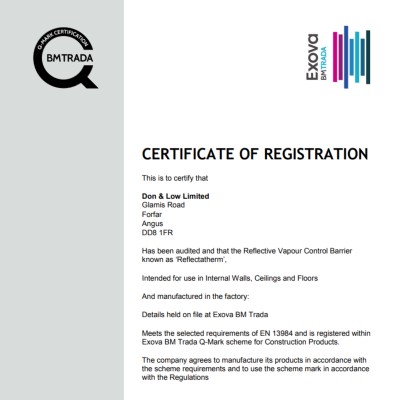

Certification
CAD Details
Global Availability
Material Properties
Reflectatherm Foil
| Property | Test Method | Result |
|---|---|---|
| Roll Sizes | 1.5 x 50 / 3 x 100 m | |
| Mass Per Unit Area | EN 1849-2 | 150 g/m2 |
| Reaction to Fire | EN 11925-2 | E Class |
| Water Vapour Resistance | EN 1931 | 750 MNs/g |
| Water Penetration - Before & After Ageing | EN 1928 | W1 Class |
| Tensile Strength - MD | EN 12311-1 | 255 N/50mm |
| Tensile Strength - CD | EN 12311-1 | 200 N/50mm |
| Elongation - MD | EN 12311-1 | 59 % |
| Elongation - CD | EN 12311-1 | 70 % |
| Tear Resistance - MD | EN 12310-1 | 164 N/50mm |
| Tear Resistance - CD | EN 12310-1 | 157 N/50mm |
| Flexibility at Low Temperature | EN 1109 | No cracking at minus 40C |
| Thermal Resistance | 0.78 W/m2K | |
| Water Vapour Resistance Sd | EN 1931 | 150 m |
| Emissivity | BS EN 15976:2011 | 0.4 |
