Profloor Micro Deck 17

Profloor Micro Deck system provides the high degree of isolation necessary to give significant improvements in the impact sound insulation of both timber and concrete floors. Profloor Micro Deck utilises the dynamic properties of foam technology and the patented edge support strip which prevents fracture of the tongue and grooved joint. It utilises the same foam layout and performs a similar function to Profloor Dynamic Deck. A smaller panel size facilitates installation in confined spaces and, the reduced thickness of only 17mm adds minimal depth to the floor build-up.

Standard: for normal domestic loadings (up to 1.4kN/m2).

Hi - Load: for floors with higher loadings (up to 4.0kN/m2).

  • Ideal for situations where floor - to - ceiling height is critical (17mm total depth)
  • Hi-load grade available for areas of excess loading
  • Deck is moisture resistant MDF
  • Ideal for both new build and refurbishment
  • Suitable for both timber and concrete floors
  • Panels have patented edge support strip which prevents fracture of the tongue and grooved joints

Profloor Micro Deck


Brochures

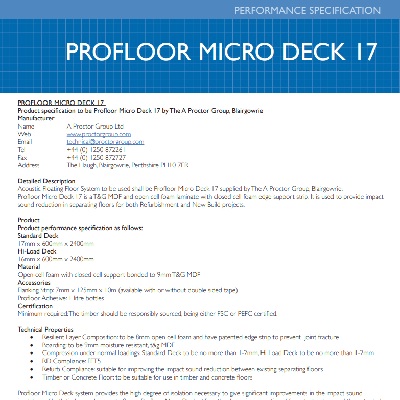

Datasheets
Installation Guides
Material Properties
UK Availability
Certification
CAD Details
Global Availability

Material Properties

Profloor Micro Deck 17

Property Test Method Result
Resilient Layer Composition Open & Closed Cell
Type & Thickness of Board 9mm T & G MDF
Resilient Layer Thickness(mm) 8 mm
Overall Thickness(mm) 17 mm
Board Size(m) 0.6 x 1.2 m
FFT Compliant FFT 5
Timber or Concrete Floor Both
