Reflectashield is a vapour permeable low emissivity membrane for use externally on timber frame buildings. Once Reflectashield TF 0.81 is applied to the walls, the primary wall covering should be installed within 3 months.
The A. Proctor Group are constantly reviewing their product portfolio to keep up with current legislation. The A. Proctor Group have re-tested Reflectashield TF 0.81 at the National Physics Laboratory (NPL) resulting in an uplift of the claimed thermal performance to an R-Value of 0.81m2K/W.
Reflectashield TF 0.81 complies with the vapour resistance requirements set out by BS 4016, TRADA and the NHBC.
Reflectashield TF Roll
Brochures

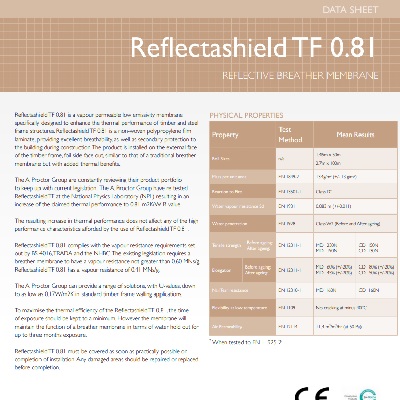

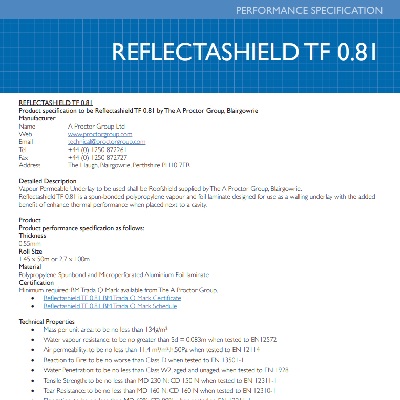

Datasheets

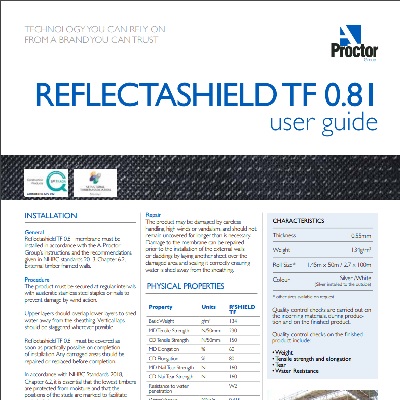

Installation Guides
Material Properties
UK Availability

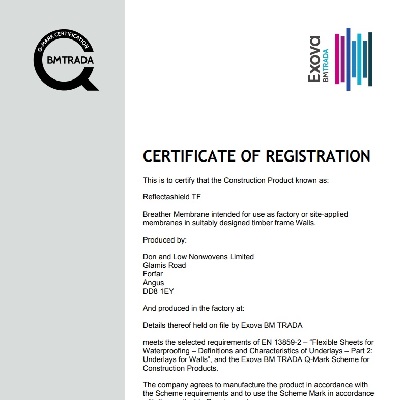

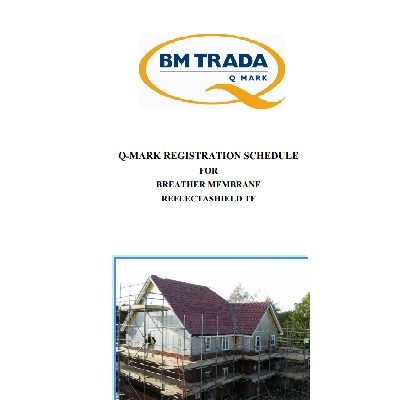

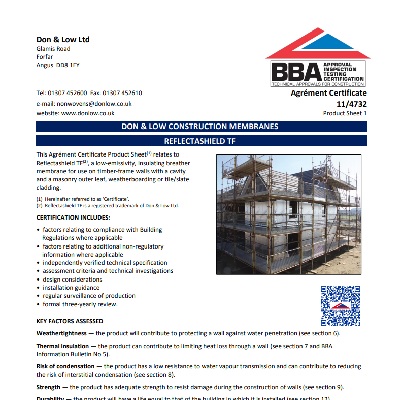

Certification
CAD Details
Global Availability
Material Properties
Reflectashield TF
| Property | Test Method | Result |
|---|---|---|
| Roll Sizes | 1.45 x 50 / 2.7 x 100 / 2.9 x 100 m | |
| Mass Per Unit Area | EN 1849-2 | 134 g/m2 |
| Reaction to Fire | EN 11925-2 | E Class |
| Water Vapour Resistance Sd | EN 12572 | 0.083 m |
| Water Penetration - Before & After Ageing | EN 1928 | W2 Class |
| Tensile Strength - Before Ageing - MD | EN 12311-1 | 230 N |
| Tensile Strength - Before Ageing - CD | EN 12311-1 | 150 N |
| Elongation - Before Ageing - MD | EN 12311-1 | 60 % |
| Elongation - Before Ageing - CD | EN 12311-1 | 80 % |
| Elongation - After Ageing - MD | EN 12311-1 | 45 % |
| Elongation - After Ageing - CD | EN 12311-1 | 50 % |
| Nail Tear Resistance - MD | EN 12310-1 | 160 N |
| Nail Tear Resistance - CD | EN 12310-1 | 160 N |
| Flexibility at Low Temperature | EN 1109 | No cracking at minus 40C |
| Thickness | 0.55 mm | |
| Emissivity | BS EN 15976:2011 | 0.05 |
