Profloor Dynamic Deck 26




Profloor Dynamic Deck 26 provides the high degree of isolation necessary to give significant improvements in impact sound insulation. Profloor Dynamic Deck System utilises the dynamic properties of dual foam technology and a patented edge support strip which prevents fracture of the tongue and grooved joint.

STANDARD: for normal domestic loadings (up to 1.4kN/m2)

HI-LOAD: for floors with higher loadings (up to 4.0kN/m2)

  • FFT5 to Robust Details
  • Suitable for both timber and concrete floors
  • Ideal for both new build and refurbishment
  • Panels have patented edge support strip which prevents fracture of the tongue and grooved joints
  • Foams are resistant to biological attack
  • Simple to install and no multi - layer build up to achieve finished floor

Profloor Dynamic Deck

Literature Download

Acoustic-Lit-DL-360x317

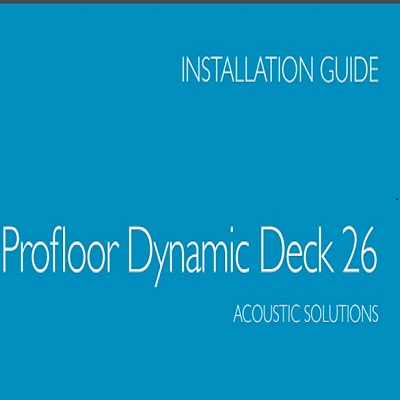

Installation Guide

DynamicDeck26-Install-360x317

NBS Clauses

NBS-Plus-360x317

CAD Details

Acoustics-CAD-360x317

UK Availability

RSM-Map-360x317

Worldwide Availability

worldmap360x317
