A large residential development in the heart of the beautiful Perthshire
countryside is benefitting from the superior protection of Roofshield, one
of the highest performing roofing membrane solutions, a pitched roof
underlay, which is both air and vapour permeable.

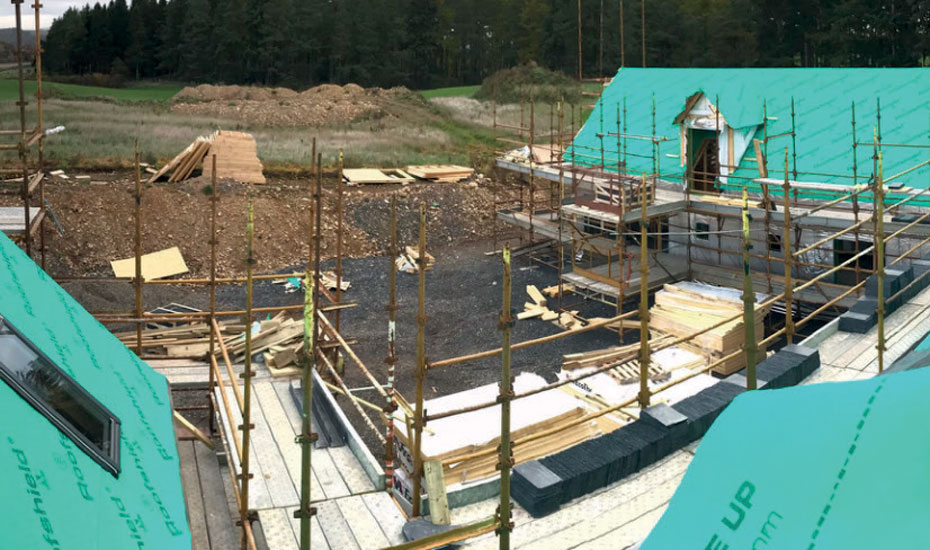

The new building near Murthly, in Perthshire is part of a tailormade
timber frame kit design supplied by Scotframe, with the construction
managed by specialist contractor Algo, design and build, based in Perth.
To form an integral part of the roof construction, Scotframe selected the
Roofshield membrane from the A. Proctor Group to ensure the highest
level of protection. Scott Cameron, Project Manager for Algo commented:
"The Roofshield membrane has been excellent in terms of its weather
tightness, with absolutely no leaks across the whole of the 583m2 site.
It's also incredibly robust so we didn't have to worry about tearing or
damaging it on site."
Roofshield continues to be one of the highest performing roofing
membrane solutions and is the preferred choice of architects, developers
and contractors. Many vapour permeable underlays use an airtight VP film
layer to achieve their performance. In contrast, Roofshield's patented SMS
(Spunbond Meltblown Spunbond) structure allows high levels of airflow,
in addition to the transport of moisture vapour, making the formation of
condensation in the roof space virtually impossible. It has an extremely
high degree of vapour permeability, as well as air permeability, so will still
perform in conditions in which airtight alternatives will not.
Preservation and protection is nothing new for this beautiful part of
Scotland, which is home to some ancient woodland. Indeed an Ancient
Tree Inventory across the region recently identified a sweet chestnut tree
as old as Bonnie Prince Charlie, which became the 15,000th ancient tree in
Scotland.

Roofshield - Perthshire

Roofshield - Perthshire
Brochures

Datasheets

Installation Guides

Material Properties

BIM Objects

UK Availability

Certification

CAD Details

Global Availability

Material Properties
Roofshield
Property | Test Method | Result |
---|---|---|
Mass Per Unit Area | EN 1849-2 | 185 g/m2 |
Reaction to Fire | EN 11925-2 | E Class |
Water Vapour Resistance Sd | EN 12572 | 0.013 m |
Vapour Resistance | EN 12572 | 0.065 MNs/g |
Air Permeability | EN 12114 | 34.4 m3/m2/hr @ 50Pa |
Water Penetration - Before Ageing | EN 1928 | W1 Class |
Water Penetration - After Ageing | EN 1928 | W1 Class |
Tensile Strength - Before Ageing - MD | EN 12311-1 | 390 N |
Tensile Strength - Before Ageing - CD | EN 12311-1 | 230 N |
Tensile Strength - After Ageing - MD | EN 12311-1 | 330 N |
Tensile Strength - After Ageing - CD | EN 12311-1 | 190 N |
Elongation - MD | EN 12311-1 | 55 % |
Elongation - CD | EN 12311-1 | 75 % |
Flexibility at Low Temperature | EN 1109 | No cracking at minus 60C |
Thickness | 0.75 mm |
BIM Objects
File | Format |
---|---|
Roofshield - BIM Object - Cold Roof Slate Softwood Sarking | IFC |
Roofshield - BIM Object - Cold Roof Tiles No Sarking | IFC |
Roofshield - BIM Object - Cold Roof Tiles Ply Sarking | IFC |
Roofshield - BIM Object - Warm Roof Slate Softwood Sarking | IFC |
Roofshield - BIM Object - Warm Roof Tiles No Sarking | IFC |
Roofshield - BIM Object - Warm Roof Tiles Ply Sarking | IFC |
Roofshield - BIM Object - Cold Roof Slate Softwood Sarking | RVT |
Roofshield - BIM Object - Cold Roof Tiles No Sarking | RVT |
Roofshield - BIM Object - Cold Roof Tiles Ply Sarking | RVT |
Roofshield - BIM Object - Warm Roof Slate Softwood Sarking | RVT |
Roofshield - BIM Object - Warm Roof Tiles No Sarking | RVT |
Roofshield - BIM Object - Warm Roof Tiles Ply Sarking | RVT |
CAD Details
- Roofshield - CAD Detail - Cold Roof Tiles
- Roofshield - CAD Detail - Warm Roof Slates And Softwood Sarking
- Roofshield - CAD Detail - Triso Super 10
- Roofshield - CAD Detail - Triso Super 10
- Roofshield - CAD Detail - Warm Roof Tiles
- Roofshield - CAD Detail - Cold Roof Slates And Softwood Sarking
- Roofshield - CAD Detail - Warm Roof OSB Or Plywood Sarking
